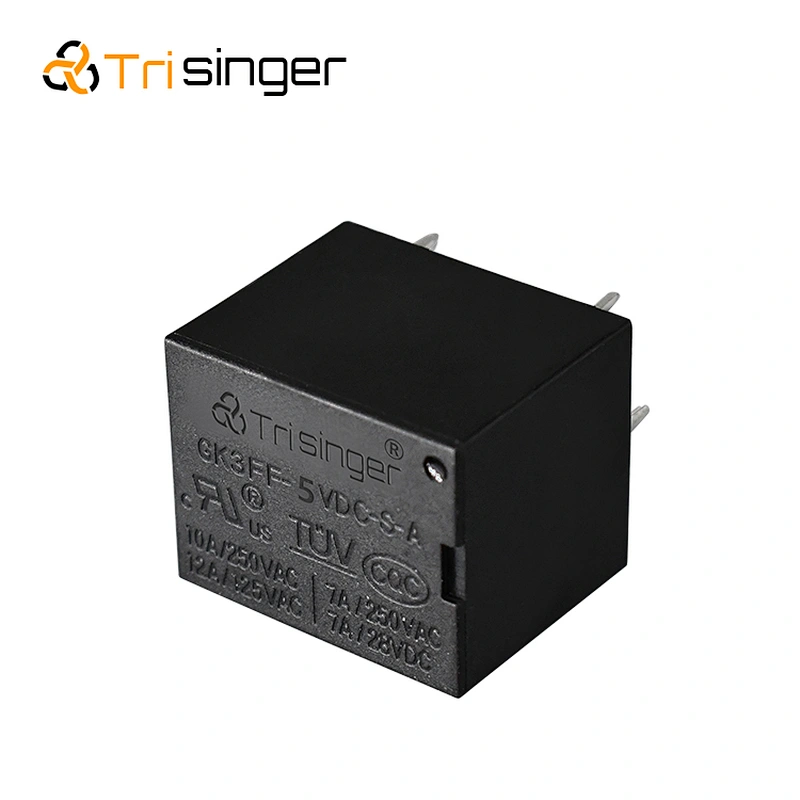

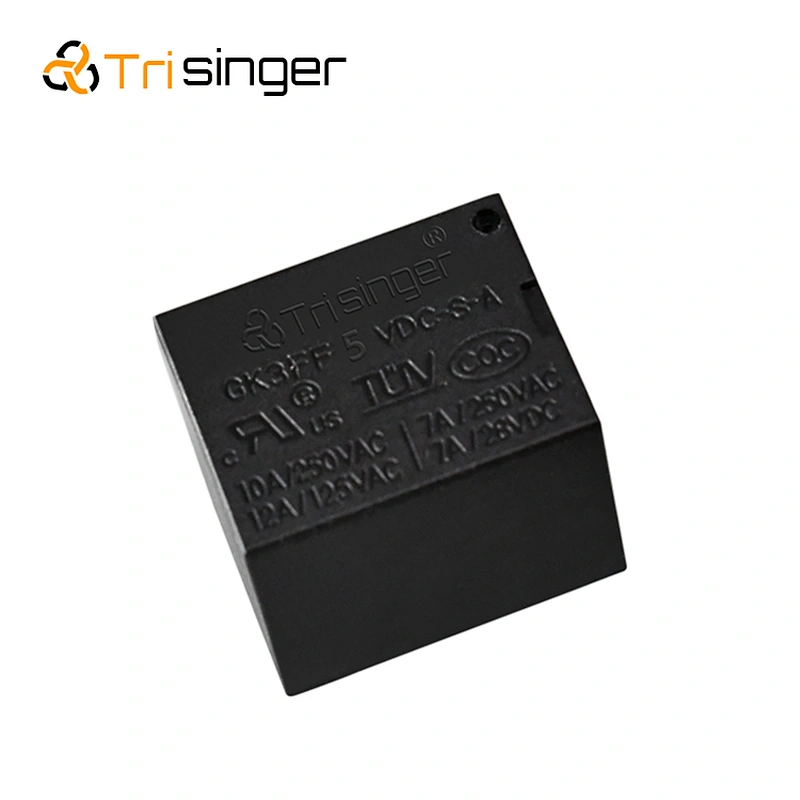

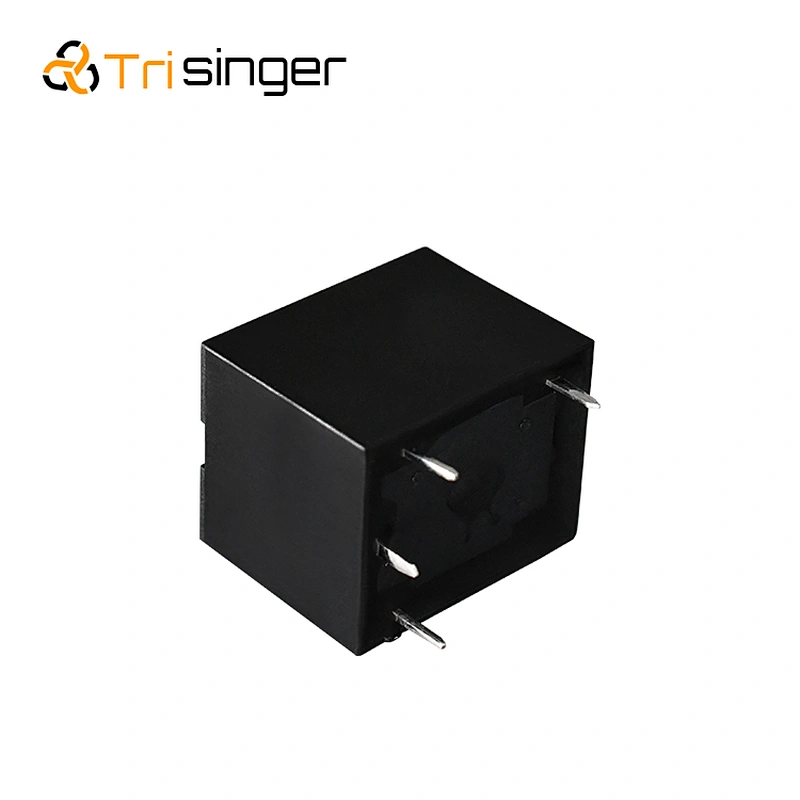

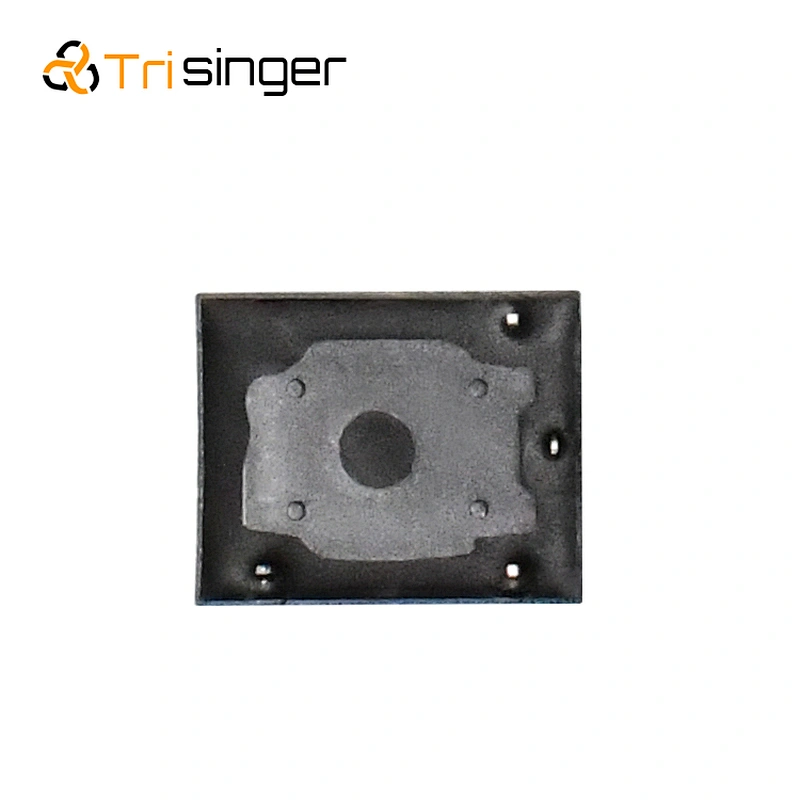

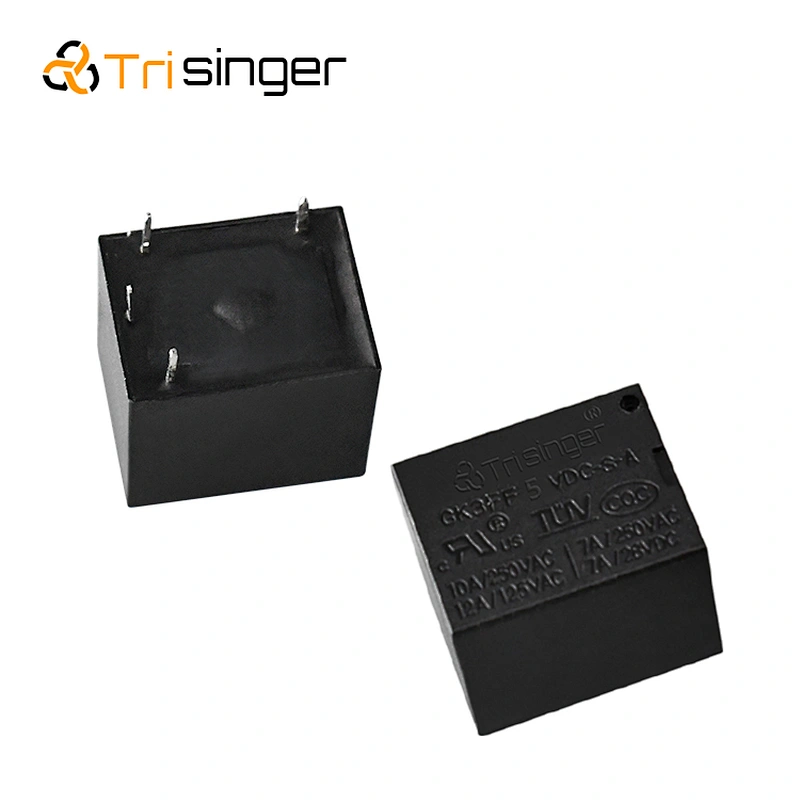

5V / 10A Miniature Electromagnetic T73 PCB Relay

5V / 10A Miniature Electromagnetic T73 PCB Relay

Model NO.: JQC-3F
Delivery: EXW/FOB/CIF/FCA/DAP
Supply Ability: 300000 piece / Month
Country of Origin: Guangdong, China
Stock Time: 3-9 Days

Quantity:

Product Description

Ordering Code

JQC-3FF-S-Z

1 2 3

1.Relay module

2.S:sealed

3.Contact Form:1Z Form C

The main specific sparameters
Relay module	JQC-3FF relay (T73,YF3F,Sangyou SRD,Hongfa HF3FF)
Coil voltage	DC: 3V 5V 6V 9V 12V 18V 24V 48V
Contact form	SPDT-CO (1 Form C)-5 pins
Contact Material	Silver Alloy
Pin	5 Pin
Contact rating	10A 250VAC, 15A 125VAC
Coil Power	0.36W
Size	19.2mm15.4mm15.4mm

Coil Data(at 20℃）

Nominal Voltage(VDC)	3	5	6	9	12	18	24	48	0.36W
Coil Resistance(Ω±10%）	25	69	100	225	400	900	1600	6400
Rated Current(mA)	120	71.4	60	40	30	20	15	7.5
Max Release Voltage(VDC)	2.25	3.75	4.5	6.75	9	13.5	18	36
Min Release Voltage(VDC)	0.15	0.25	0.3	0.45	0.6	0.9	1.2	2.4
Max Applicable Voltage	130% of the rated voltage at 70℃ and 170% at 23℃

Contact Data

Contact Ratings	10A 250VAC 15A 125VAC
Minimum Load	100mA 5VDC
Max Switching Voltage	250VAC/30VDC
Max Switching Current	15A
Max Switching Power	2500VA/240W
Contact Resistance	100mΩMax at 6VDC 1A
Life Expectancy	Electrical:100,000 Operations(at 30 Operations/minute)
Life Expectancy	Mechanical:10,000,000 Operations(at 30 Operations/minute)

Characterinstics data

Insulation Resistance	100MΩMin at 500VDC
Dielectric Strength Between Open Contacts	750VAC(50/60Hz for one minute)
Between Contacts And Coil	1500VAC(50/60Hz for one minute)
Operate Time	10ms
Release Time	5ms
Temperature Range	-40℃ to +85℃
Shock Resistance	Operating Extremes:10G
Shock Resistance	Damage Limits:100G
Vibration Resistance	10-55Hz,1.5mm
Max.switching frequency	Mechanical:18,000 operations/hr
Max.switching frequency	Electrical:1,800 operations/hr
Humidity	40-85%
Weight	Approx 10g
Safety Standard	CQC UL TUV ROSH

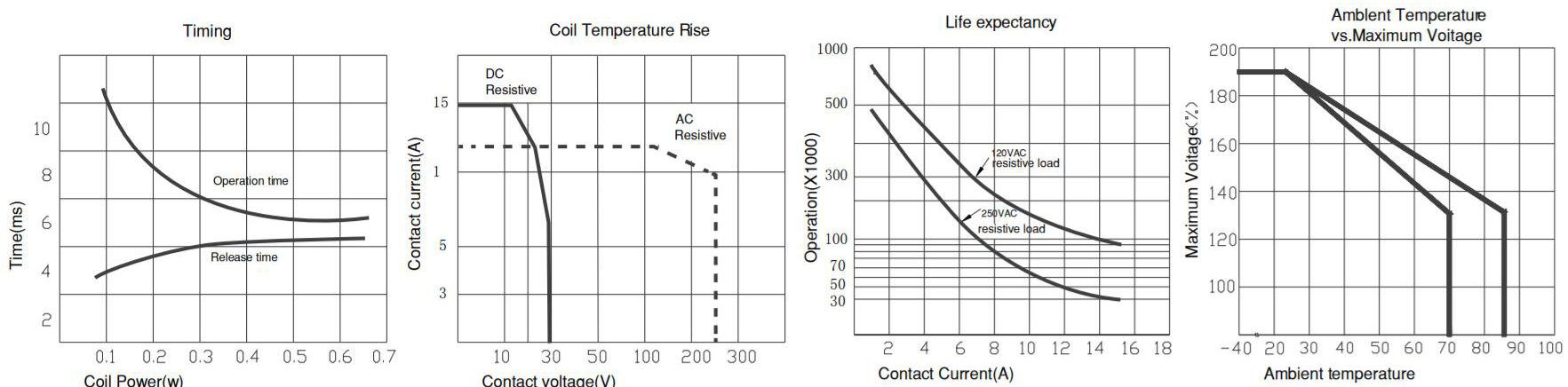

Engineering Data

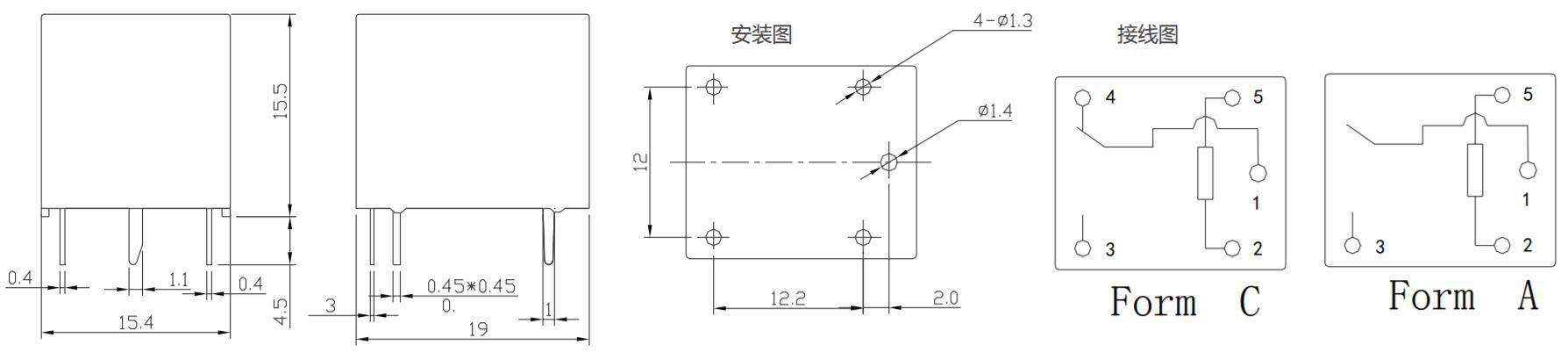

Overall And Mounting Dimensions

Superior quality

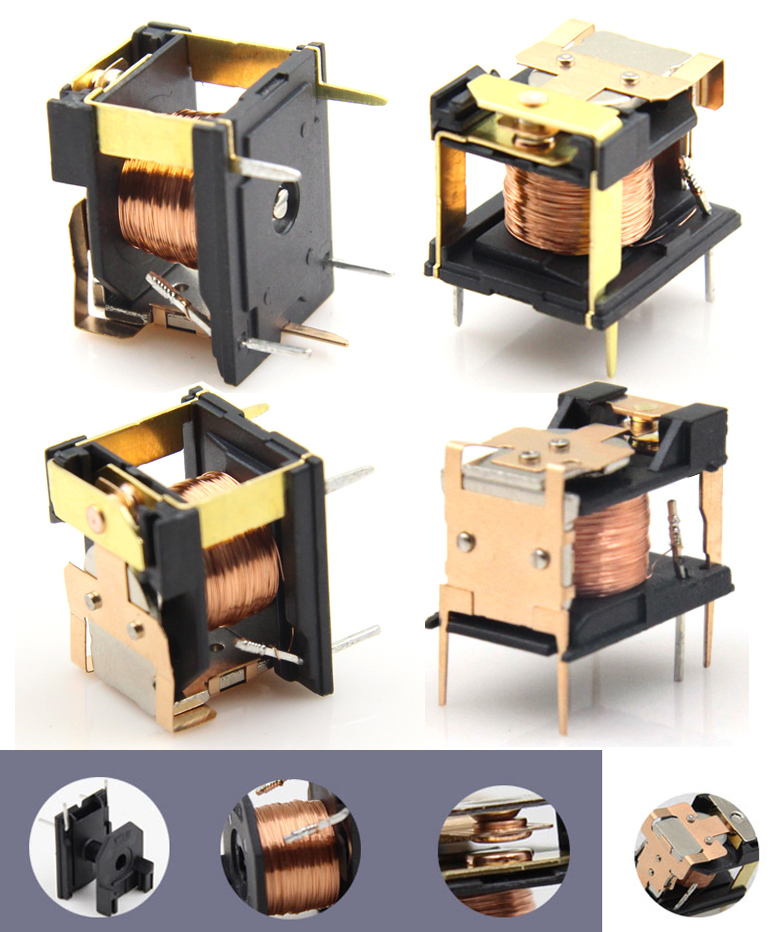

JQC-3FF series relay adopts composite silver contact, which is sufficient for 10A 250VAC load. Select high-quality raw materials with excellent quality.
