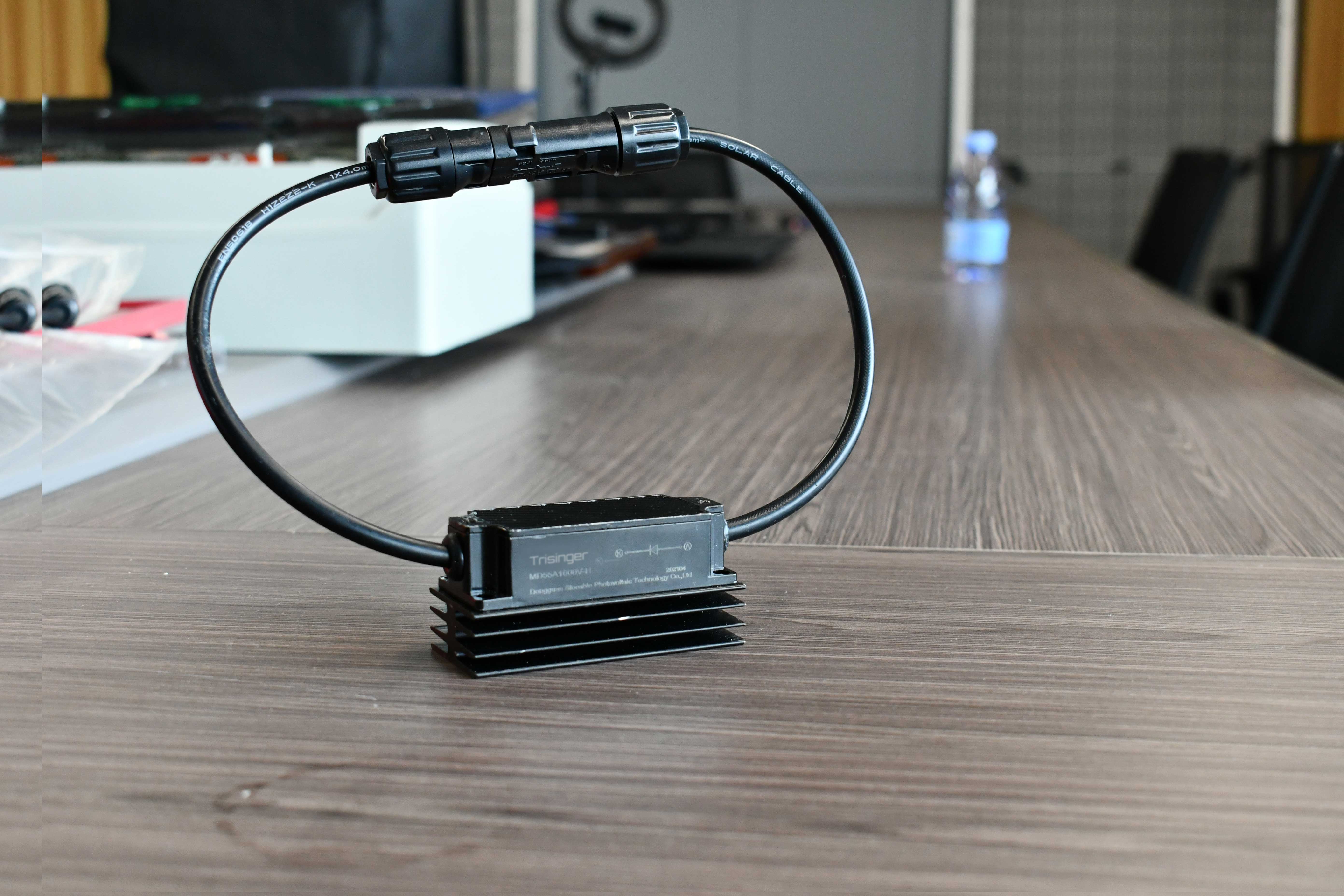

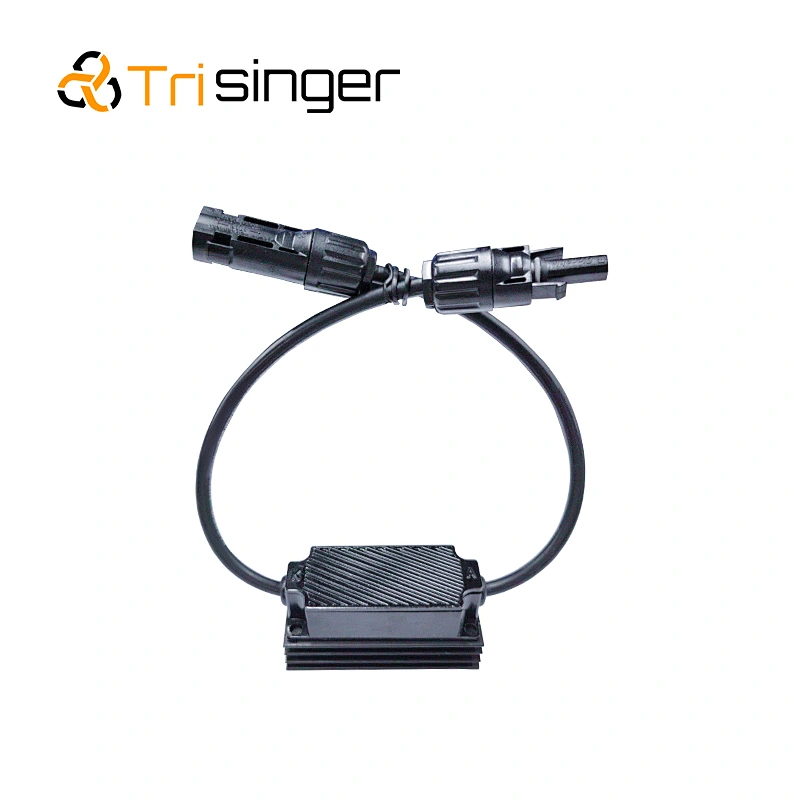

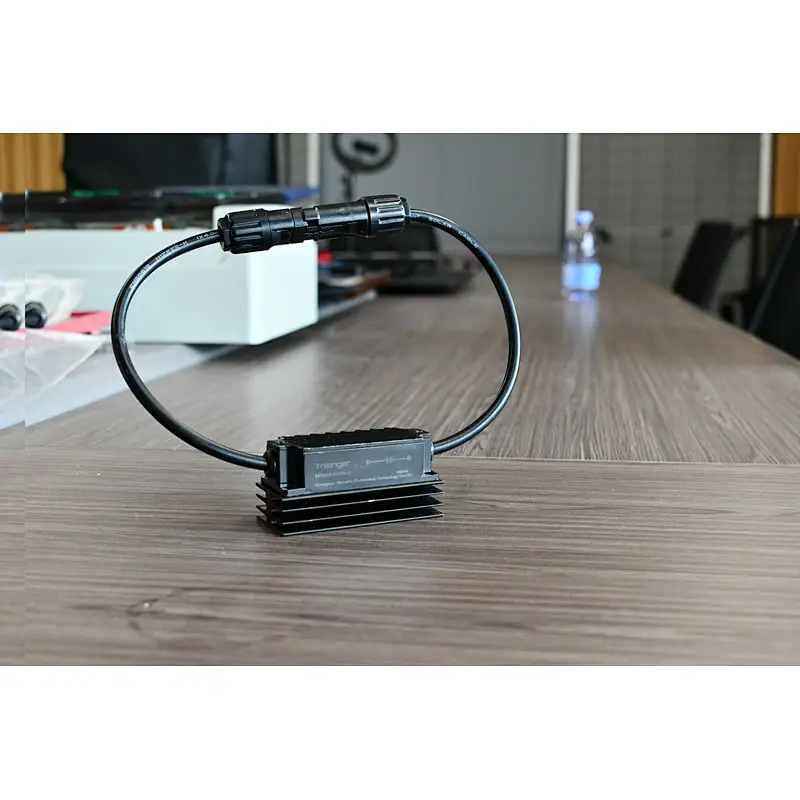

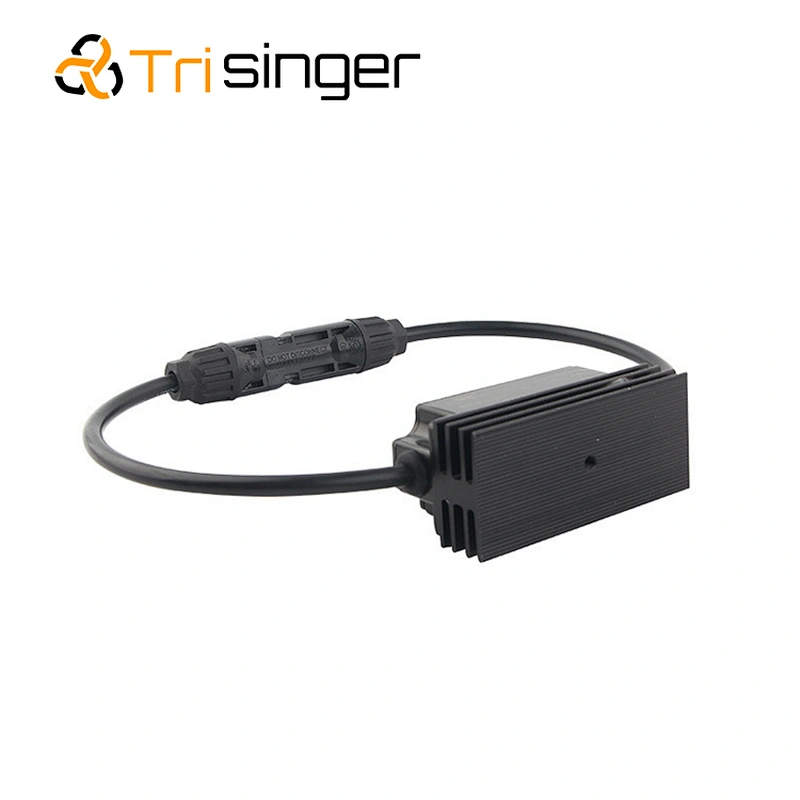

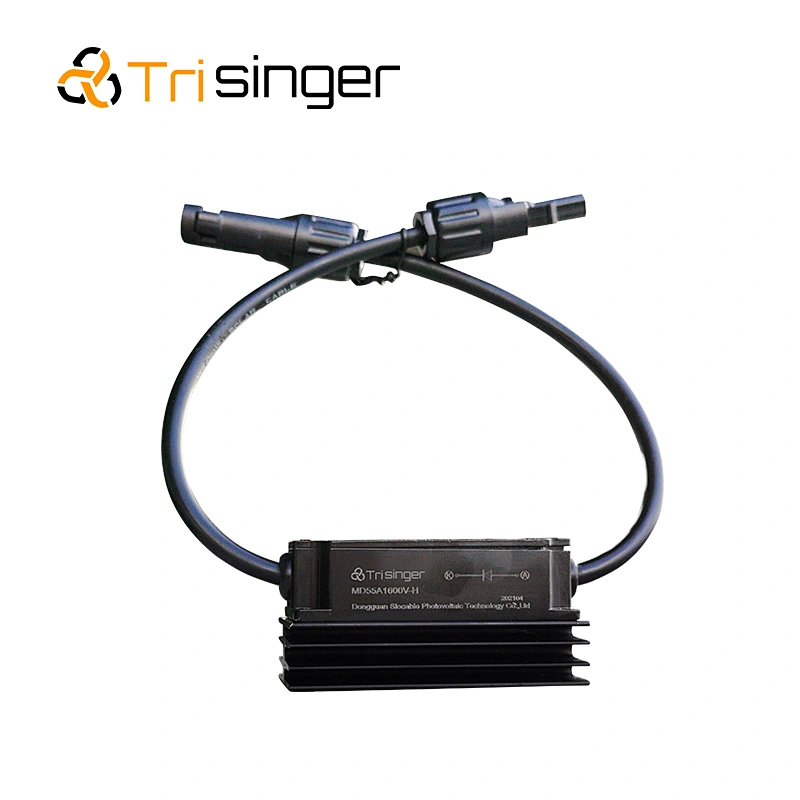

800V DC 2500V AC 55A Anti Reverse Diode

800V DC 2500V AC 55A Anti Reverse Diode

800V DC 2500V AC 55A Anti Reverse Diode

800V DC 2500V AC 55A Anti Reverse Diode

800V DC 2500V AC 55A Anti Reverse Diode

800V DC 2500V AC 55A Anti Reverse Diode

800V DC 2500V AC 55A Anti Reverse Diode

800V DC 2500V AC 55A Anti Reverse Diode

800V DC 2500V AC 55A Anti Reverse Diode

800V DC 2500V AC 55A Anti Reverse Diode

800V DC 2500V AC 55A Anti Reverse Diode

800V DC 2500V AC 55A Anti Reverse Diode

800V DC 2500V AC 55A Anti Reverse Diode

800V DC 2500V AC 55A Anti Reverse Diode

Model NO.: CN40-DC-55
Delivery: EXW/FOB/CIF/FCA/DAP
Supply Ability: 200000 piece / Month
Country of Origin: Guangdong, China
Stock Time: 3-9 Days

Quantity:

Product Description

Parameter description of diode connector:

Symbol	Parameter	Test Condition	Temp.	Value		Unit
				Min	Max
IF(AV)	Average forward current	180° half-sinusoid,50HZ Single heat dissipation,Tc=85	160		55	A
IF(RSM)	RMS Current		160		85	A
VRRM	Repetitive peak reverse voltage	VRRM tp=10ms VRSM=VRRM+200V	160	600	1800	V
IRRM	Repetitive peak reverse current	VRM=VRRM	130		3	mA
IFSM	Surge forward current	10m width,half-sinusoid VR=0.6VRRM	160		2.3	KA
I2t	Maximum rated value I2t					103a2s
VFM	Peak forward voltage drop	IFM=170A	25	0.78	0.82	V
Rth (j-c)	Thermal resistant(junction to case)	180° half-sinusoid,positive heat dissipation			0.47	℃/W
Rth (c-h)	Thermal resistant(case to heatsink)	180° half-sinusoid,positive heat dissipation			0.2	℃/W
Viso	Insulation Voltage	50Hz,R.M.S,t=1min,Iiso:1Ma(max)		3100		V
Tstq	Storage temperature			-40	125	℃
