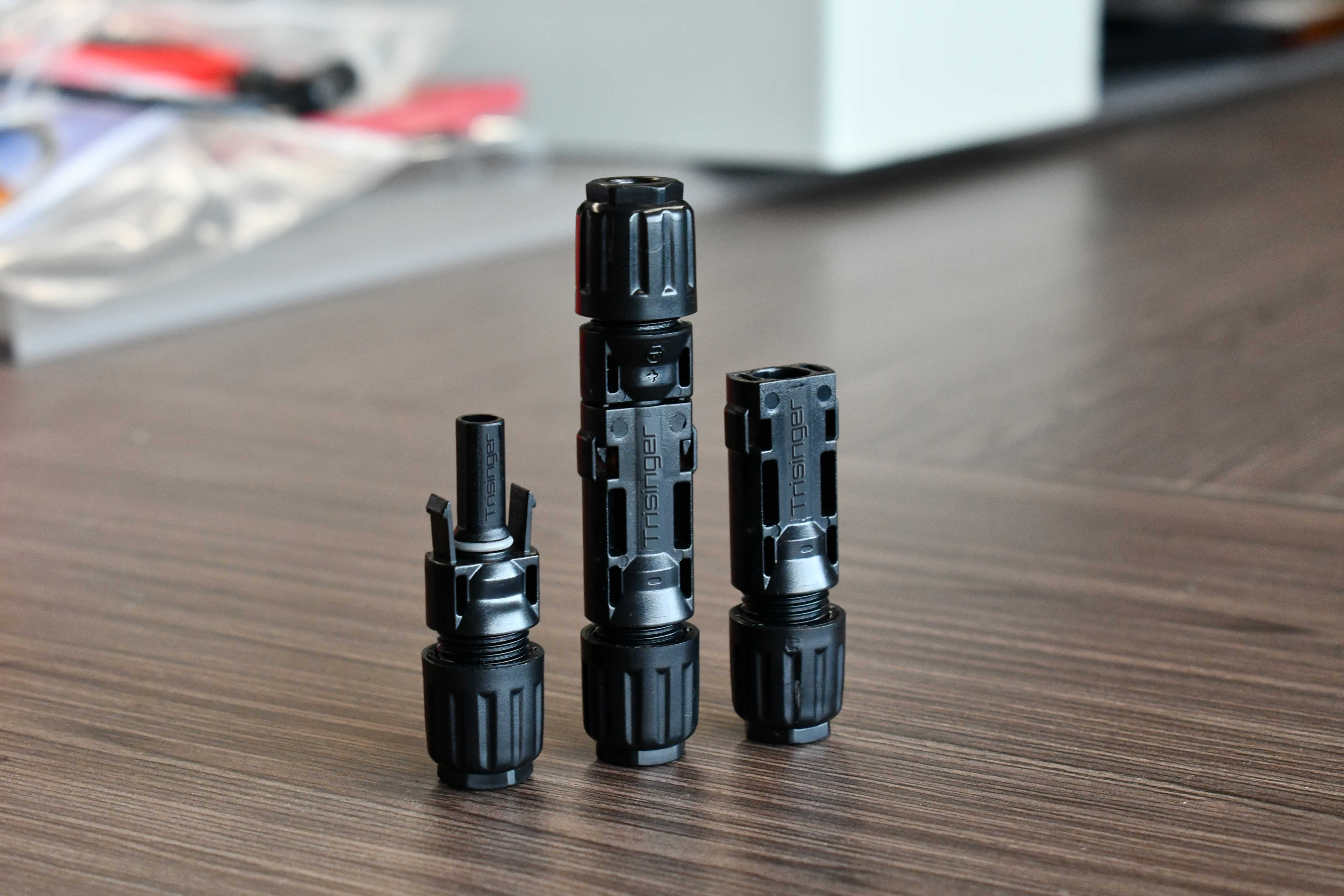

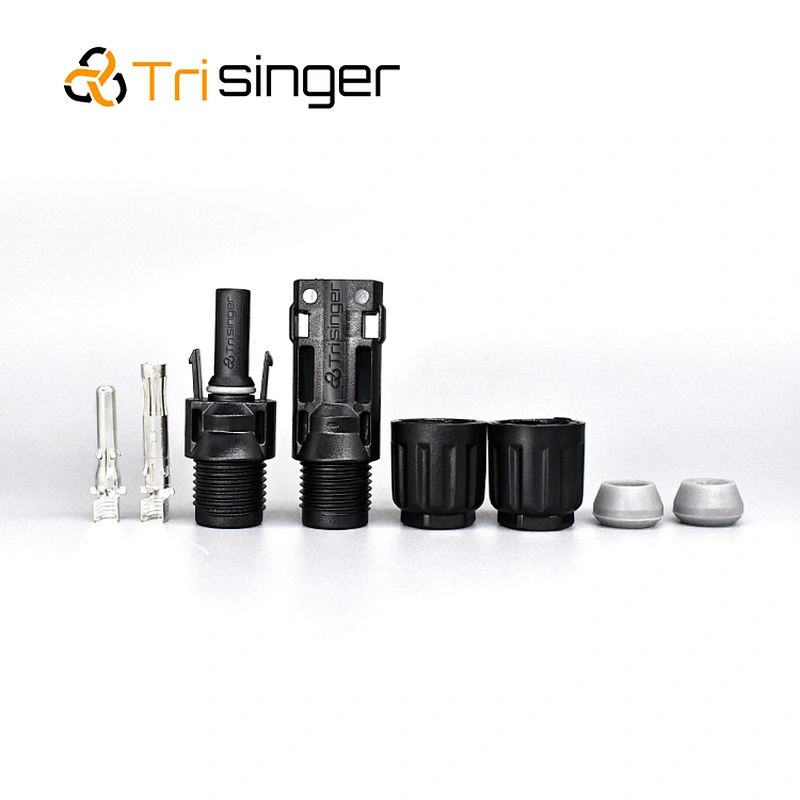

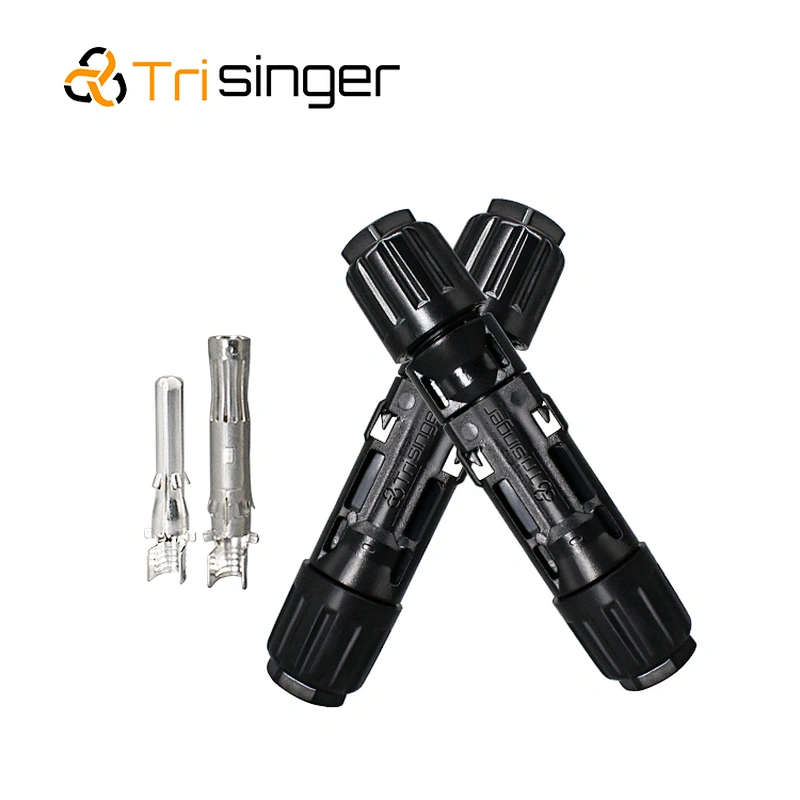

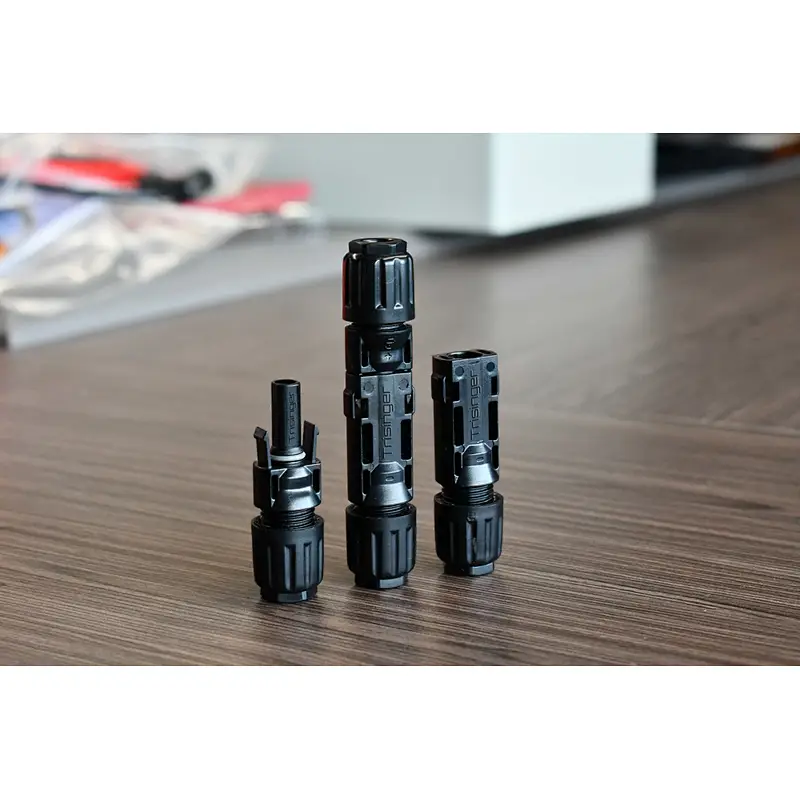

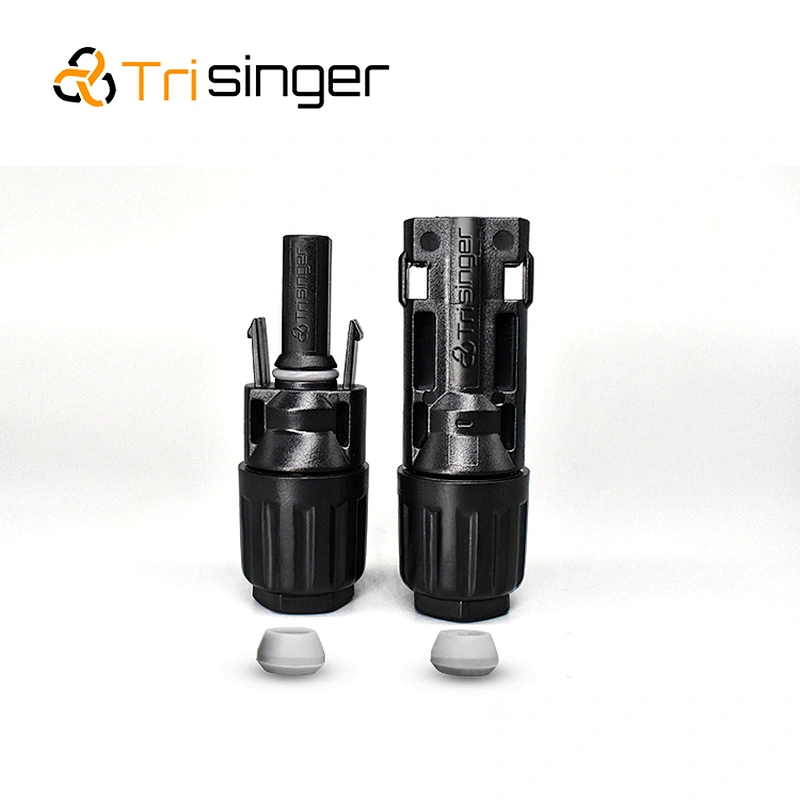

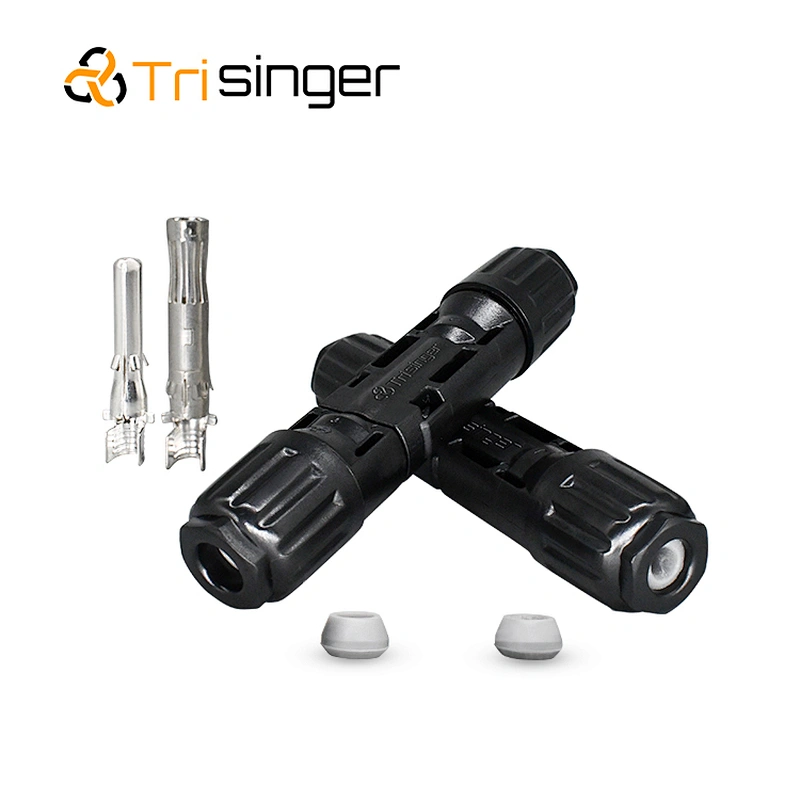

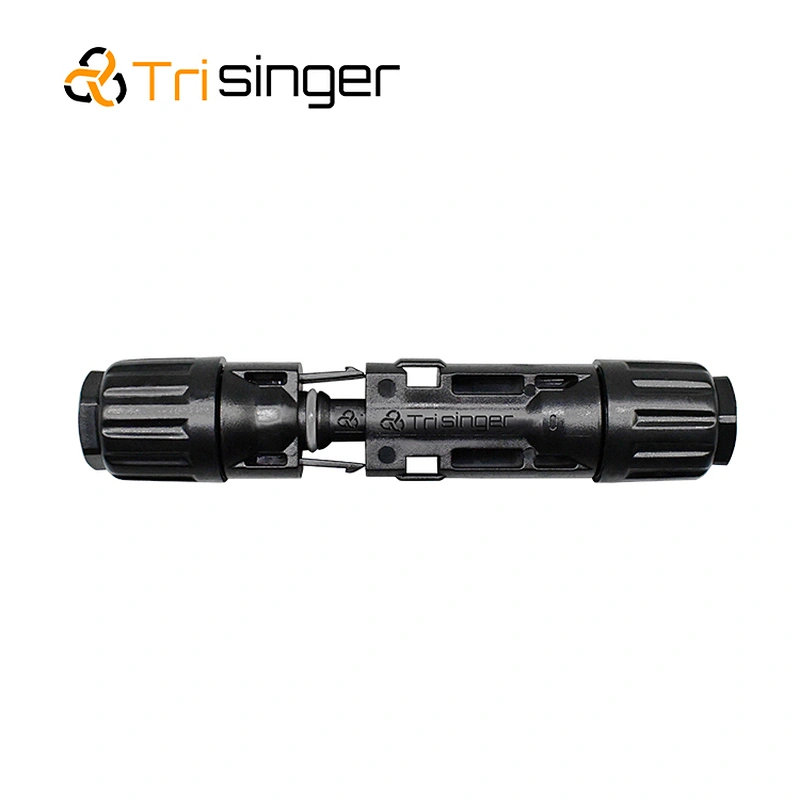

IP68 Waterproof PV 1500V DC Solar Connector
IP68 Waterproof PV 1500V DC Solar Connector
IP68 Waterproof PV 1500V DC Solar Connector
IP68 Waterproof PV 1500V DC Solar Connector
IP68 Waterproof PV 1500V DC Solar Connector
IP68 Waterproof PV 1500V DC Solar Connector
IP68 Waterproof PV 1500V DC Solar Connector
IP68 Waterproof PV 1500V DC Solar Connector
IP68 Waterproof PV 1500V DC Solar Connector
IP68 Waterproof PV 1500V DC Solar Connector
IP68 Waterproof PV 1500V DC Solar Connector
IP68 Waterproof PV 1500V DC Solar Connector
IP68 Waterproof PV 1500V DC Solar Connector

IP68 Waterproof PV 1500V DC Solar Connector

Model NO.
CN40-CM
Delivery
EXW/FOB/CIF/FCA/DAP
Supply Ability
500000 / Month
Country of Origin
Guangdong, China
Stock Time
3-9 Days
Quantity:

Description:

·Simple on-site processing

·Mating safety provided by keyed housings

·Mutiple plugging and unplugging cycles

·Accomodates PV cable with deferent insulation diamaters

·High Voltage and Current carrying capacity

·TUV and CE approved

·Competitive price


Technical Data:

 Insulation Material: PPO Contact material: Copper,Tin plated

 Rated current:

 30A(2.5mm2),

 50A(4mm2,6mm2)

 Insertion force: Max. 50N
 Rated Voltage: 1000V/1500V DC Withdrawal force: Min. 50N
 Test voltage:   8kV(50Hz,1min)  Ambient temperature  range: -40℃~+90℃
 Contact resistance: <0.5mΩ Flame class: UL94-V0
 Waterproof protection:  IP68 Connecting system: Crimping connection
 Overvoltage degree:

 CATIII/2

 Suitable cable cross  section:

 2.5/4/6/10mm2,  14/12/10/8AWG
