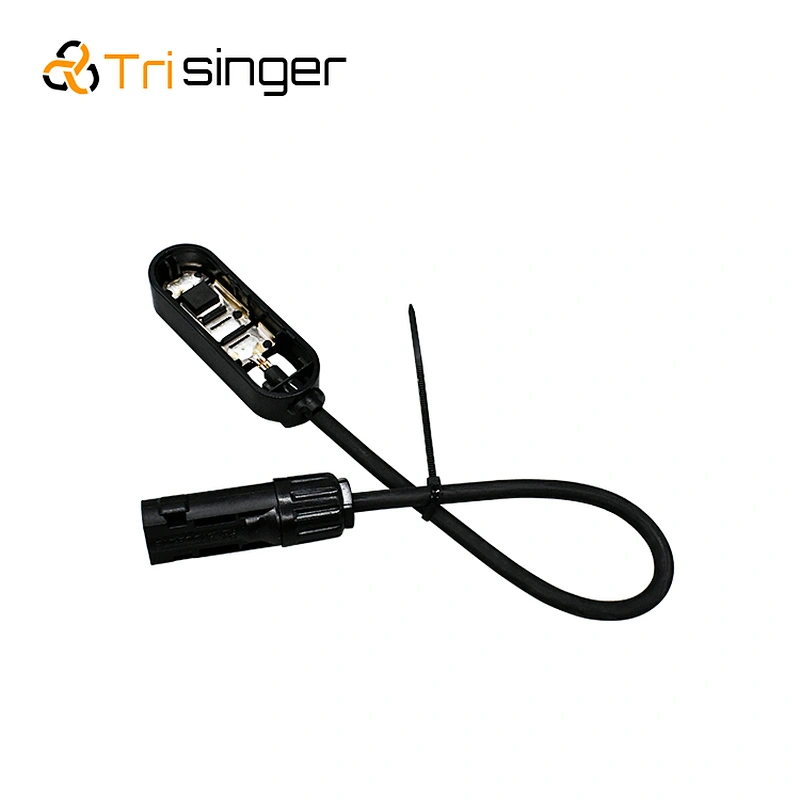

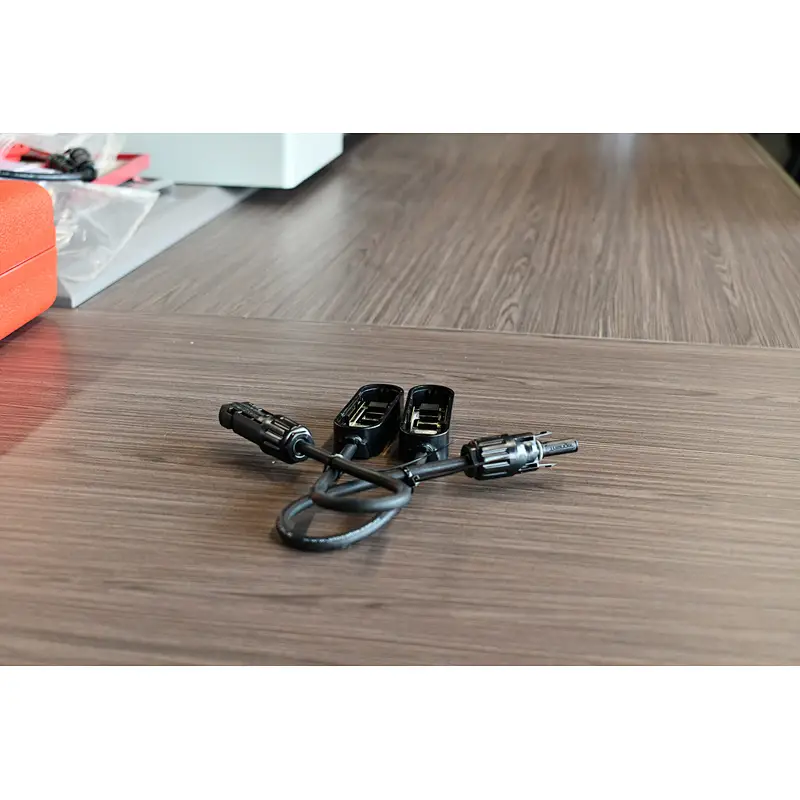

Outdoor Electronic Plastic Terminal Connecting Waterproof Cable Junction Box

Outdoor Electronic Plastic Terminal Connecting Waterproof Cable Junction Box

Outdoor Electronic Plastic Terminal Connecting Waterproof Cable Junction Box

Outdoor Electronic Plastic Terminal Connecting Waterproof Cable Junction Box

Outdoor Electronic Plastic Terminal Connecting Waterproof Cable Junction Box

Outdoor Electronic Plastic Terminal Connecting Waterproof Cable Junction Box

Outdoor Electronic Plastic Terminal Connecting Waterproof Cable Junction Box

Outdoor Electronic Plastic Terminal Connecting Waterproof Cable Junction Box

Outdoor Electronic Plastic Terminal Connecting Waterproof Cable Junction Box

Outdoor Electronic Plastic Terminal Connecting Waterproof Cable Junction Box

Outdoor Electronic Plastic Terminal Connecting Waterproof Cable Junction Box

Outdoor Electronic Plastic Terminal Connecting Waterproof Cable Junction Box

Outdoor Electronic Plastic Terminal Connecting Waterproof Cable Junction Box

Outdoor Electronic Plastic Terminal Connecting Waterproof Cable Junction Box

Model NO.: PV-YX102A
Delivery: EXW/FOB/CIF/FCA/DAP
Supply Ability: 300000 set / Month
Country of Origin: Guangdong, China
Stock Time: 3-9 Days

Quantity:

Product Description

Product Description

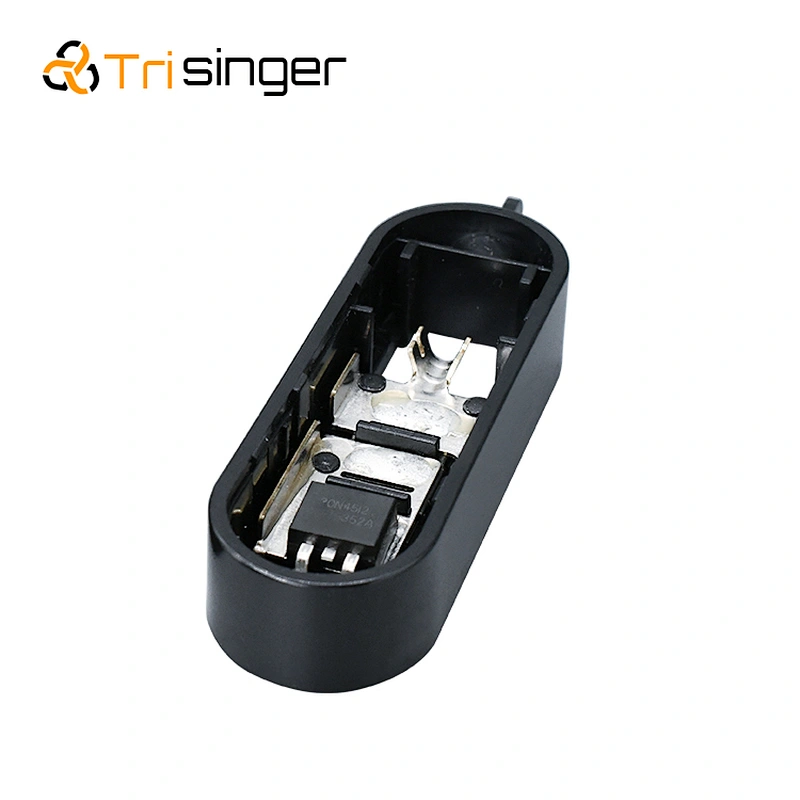

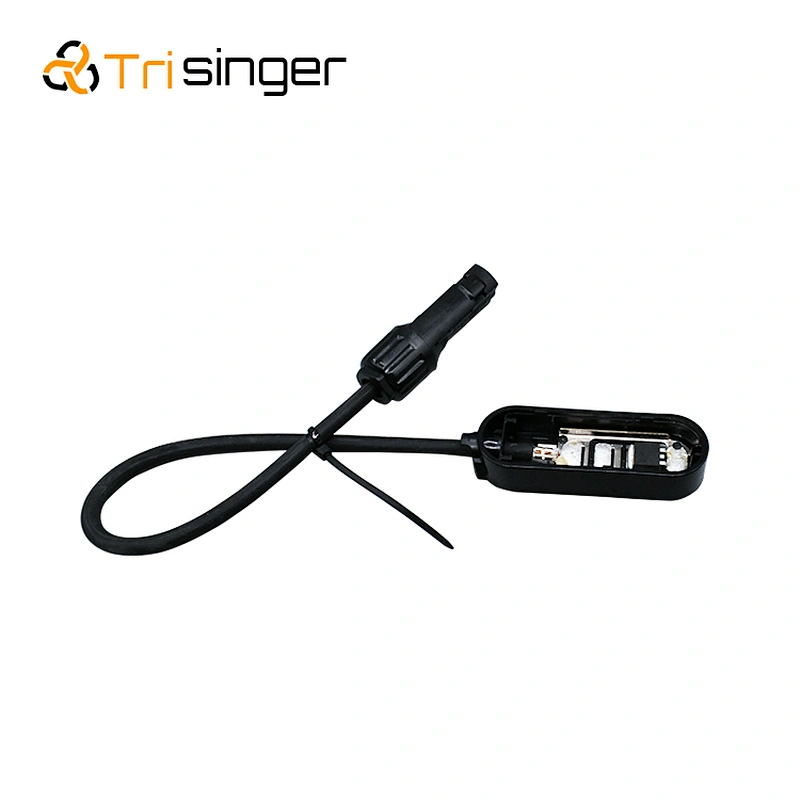

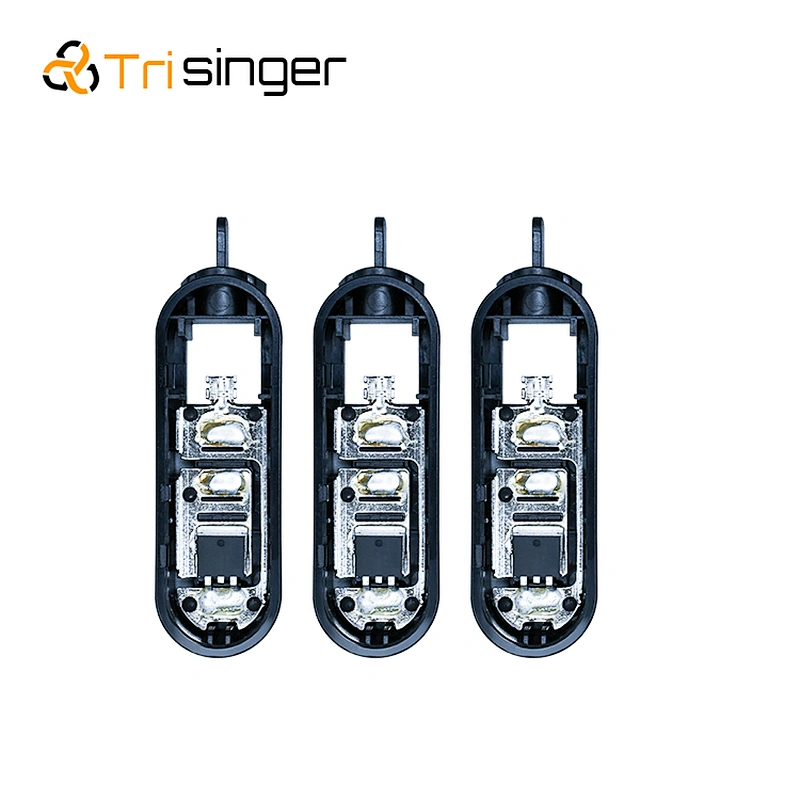

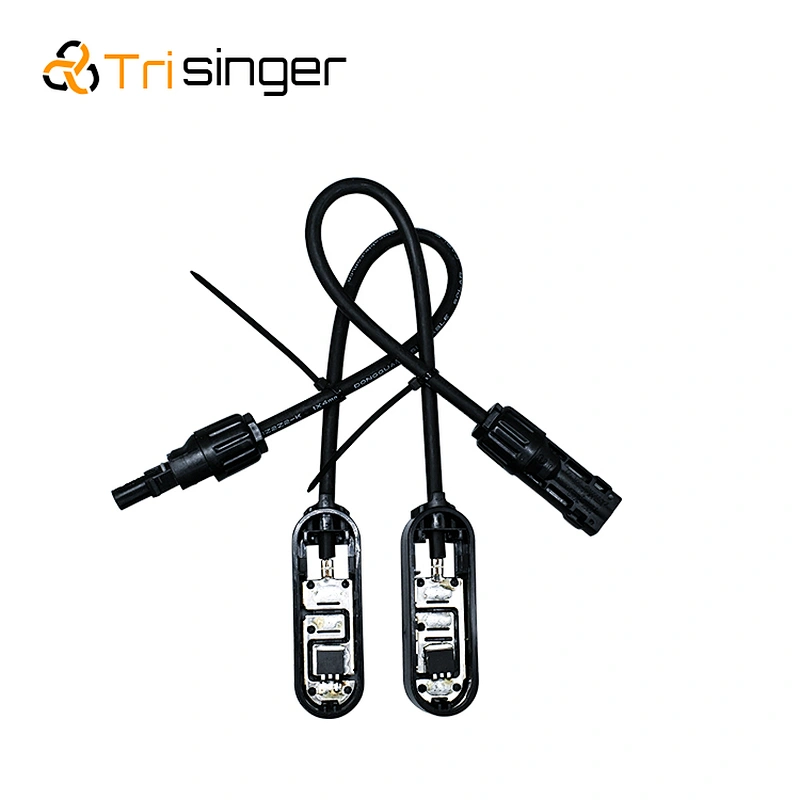

^{Product name}	^{Solar PV Junction Box}
^{Rated current}	^16A/20A/25A
^{Rated Voltage}	^{1500V DC}
^{Test voltage}	^8kV
^{Contact resistance}	^{<0.5mΩ (under 25℃)}
^{Waterproof protection}	^IP68
^{Overvoltage degree}	^CATIII/2
^{Safety class}	^{Class Ⅱ}
^{Application class}	^{Class A}
^{Working temperature}	^{-40°C~+85°C}
^{Tension of cable and terminal}	^≥350N
^{Wire Size Range}	^{4mm2 solar cable}
^{Bypass diode requirements}	^{IR≤200μA (25℃); VRRM≥45V; VF≤0.6 (25℃)}
^{Insulation Material}	^PPO

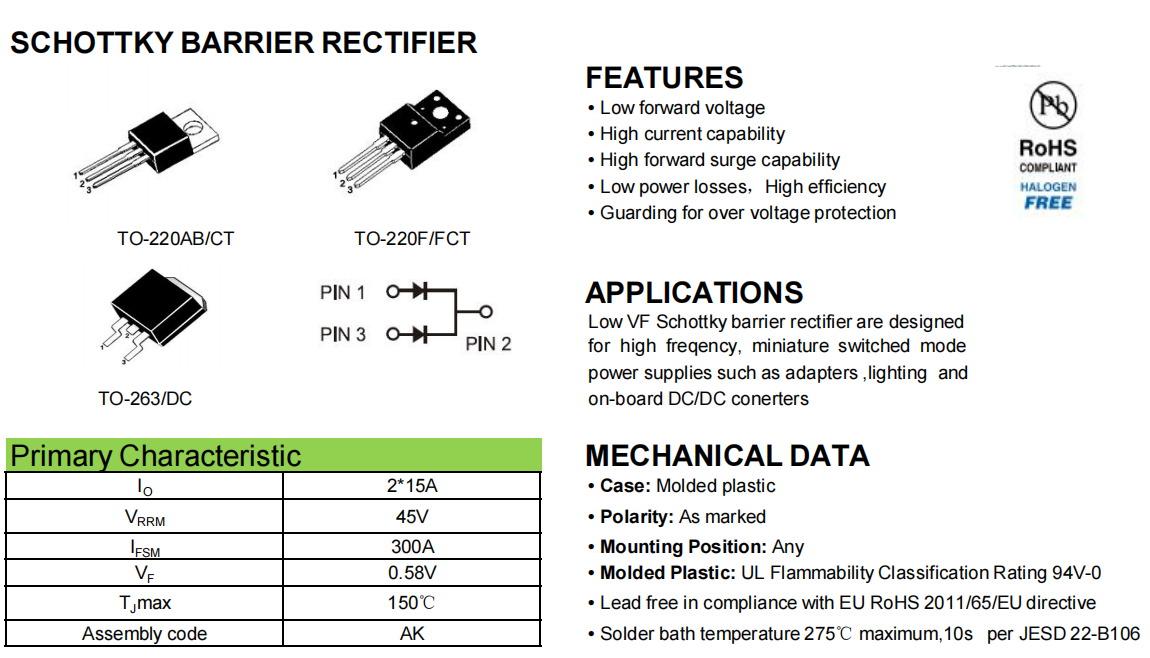

^{The features of solar junction box with pv connector:}

^{Low forward voltage}
^{High current capability}
^{High forward surge capability}
^{Low power losses,High efficiency}
^{Guarding for over voltage protection}

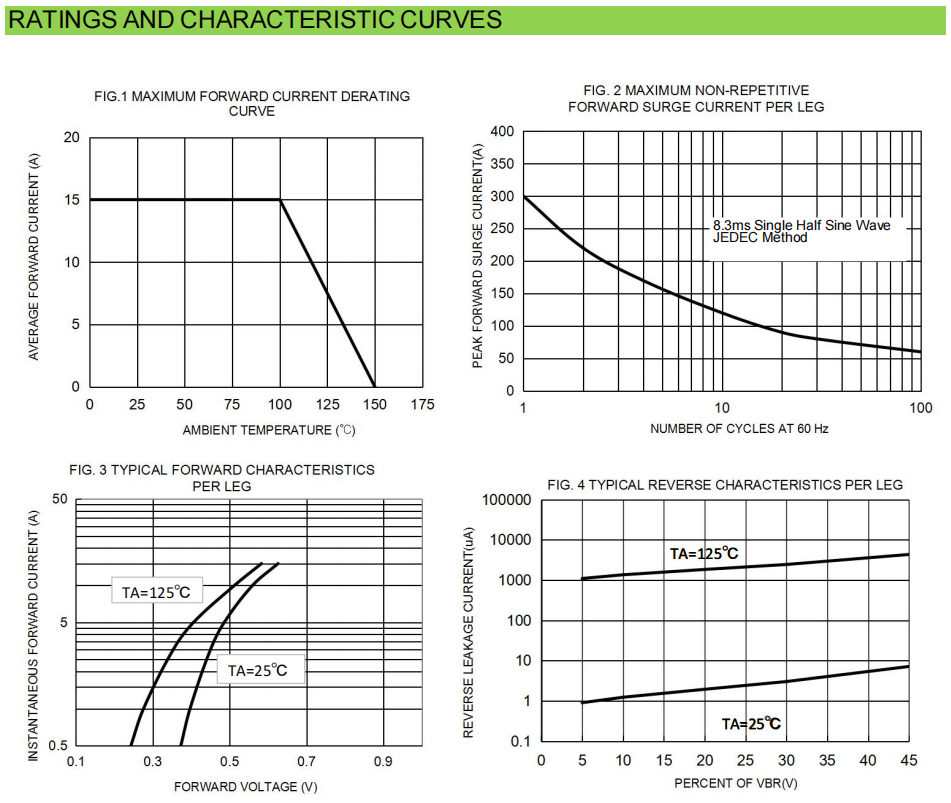

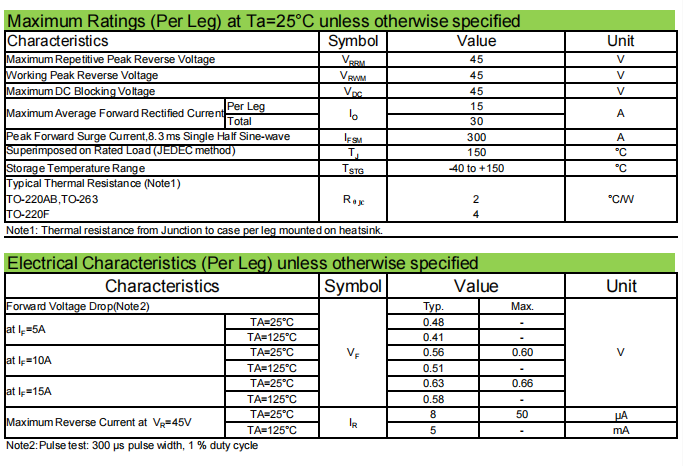

Technical Data
